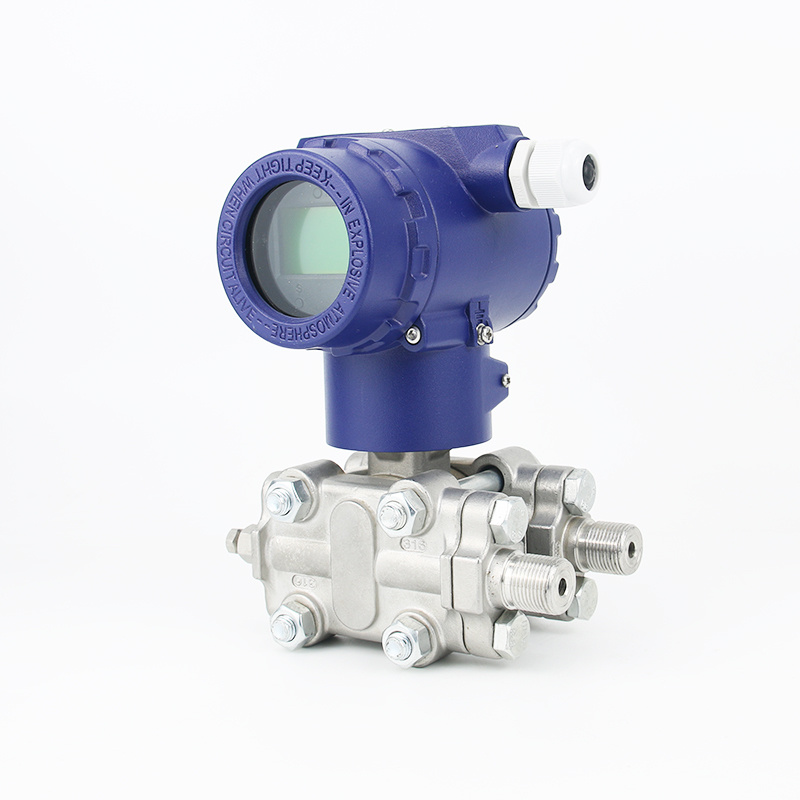

3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable

Name: 3051 Gauge Pressure Transmitter 420mADC HART Protocol OEM Customized Digital Display Industrial Durable
Brand: Yunyi
Price: 131 USD

Wholesale 3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable from china suppliers

Customization : OEM

Safety Grade : IP65

Place of Origin : China

Housing Protection : IP65

Output Signal : 4 to 20 mA DC with digital communication

Protection Class : IP 65 Pressure Transmitter

Pressure Type : Differential Pressure sensor

Pressure Range : -0.1....0~0.01... ~100MPa

Wetted Material : 316L

Media : liquid, gas, or steam flow

Connection : M20*1.5(2pcs)

Packaging Details : Carbon box

MOQ : 1

Maximum Turndown Ratio : 100:1

Certification : CE/RoHs

Price : $131, 10-499 pieces

Mounting : Direct or remote

Delivery Time : 10 working days

Vacuum Resistance : 10 mbar (0.15 psi)

Brand Name : Yunyi

Supply Ability : 5000 pieces/year

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Display : Optional LCD

Storage Temperature : -40ºC~100ºC

Model Number : YD3051

Contact Now

Product Introduction

The 3051 is a smart pressure transmitter with high accuracy. It supports differential pressure, gauge pressure and absolute pressure measurement. The output signal is 4 to 20 mA with HART protocol. It has a stainless steel housing and an optional LCD display. This transmitter is reliable for industrial use.

Application Scope

The 3051 pressure transmitter is widely used in oil and gas, chemical, power generation, water treatment and HVAC systems. It measures flow, level and pressure of gas, steam or liquid in pipelines and tanks. It works well in normal and hazardous areas with its optional explosion proof version.

3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable

5 Key Selling Points

High Accuracy & Smart Output – ±0.075% FS accuracy with 4-20mA + HART digital protocol for precise, real-time pressure, flow, and level measurement.
Versatile Pressure Ranges – Supports differential (DP), gauge (GP), and absolute (AP) pressure from 0–100 Pa to 40 MPa, suitable for gas, steam, liquid, and corrosive media.
Durable Industrial Design – Stainless steel housing, IP66/IP67 rated, with optional Ex-proof (ATEX/IECEx) for hazardous areas.
Advanced Sensor Technology – Capacitive silicon sensor with temperature compensation ensures long-term stability and minimal drift.
User-Friendly Configuration – Local LCD display, push-button zero/span adjustment, and RS485 Modbus option for easy integration into PLC/DCS systems.
